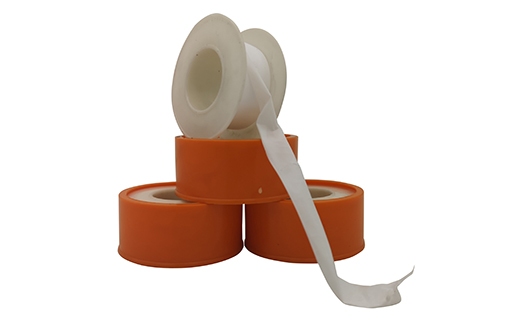

MK6520 PTFE THREAD TAPE
Product varieties include turning film, oriented film, semi-oriented film and color film. PTFE thread tape has the characteristics of high strength, good insulation and non-stickiness. Especially F, the oriented film has high crystallinity, tightly aligned molecular orientation, and extremely small void ratio. The electrical and mechanical properties of the national film are greatly improved compared with ordinary films. The DC breakdown voltage can be increased from 30kv / mm to 200kv / mm. The thickness can reach several microns. PTFE thread tape is suitable for insulating layer of capacitor medium, special cable, wire insulation, electrical instrument insulation and sealing gasket, and also can be used as non-stick tape, sealing tape, mold release and heat insulation material.
Download PDF Submit your InquiryFEATURES
Product varieties include turning film, oriented film, semi-oriented film and color film.
PTFE thread tape has the characteristics of high strength, good insulation and non-stickiness. Especially F, the oriented film has high crystallinity, tightly aligned molecular orientation, and extremely small void ratio.
The electrical and mechanical properties of the national film are greatly improved compared with ordinary films.
The DC breakdown voltage can be increased from 30kv / mm to 200kv / mm.
The thickness can reach several microns.
PTFE thread tape is suitable for insulating layer of capacitor medium, special cable, wire insulation, electrical instrument insulation and sealing gasket, and also can be used as non-stick tape, sealing tape, mold release and heat insulation material.
MODEL SPECIFICATIONS
Specification
| Thickness(mm) | Width(mm) | Length (mm) |
|---|---|---|
| 0.03 - 0.04 | 5 - 150 | >30000 |
| 0.05 - 0.10 | 5 - 150 | >30000 |
| 0.10 - 0.50 | 5 - 150 | >30000 |
Physical Properties:
| No. | Item | Unit | Target | ||||
|---|---|---|---|---|---|---|---|
| Sterespecific film | SFM-2 | SFM-3 | |||||
| Semi-stereospecific film | Non-stereospecific film | Semi-stereospecific film | Non-stereospecific film | ||||
| 1 | Tensile strength | MPa | ≥30.0 | ≥20.0 | ≥10.0 | ≥30.0 | ≥10.0 |
| 2 | Elongation | % | ≥30 | ≥60 | ≥100 | ≥30 | ≥100 |
| 3 | Dielectric Strength | KV/mm |
average 200 min 40 |
average 60 min 6 |
average 40 min 4 |
average 60 | average 30 |
SFM-1 Used as capacitor medium.
SFM-2 Used for conductor insulation.
SFM-3 Used as electrical instrument insulation and sealing gasket.
