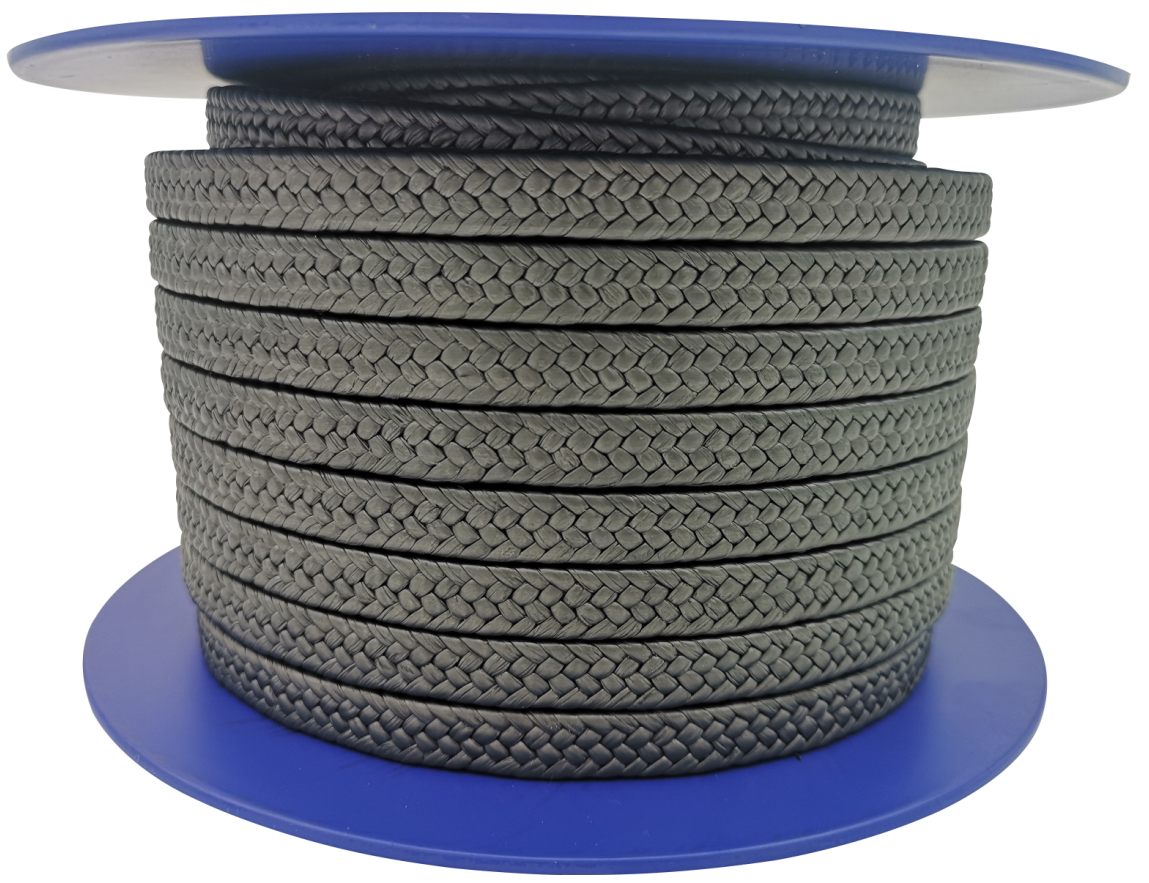

1176 GORE FIBER PTFE GRAPHITE BRAIDED PACKING
MK1176 is braided with imported GORE fiber.Good chemical resistant and heat resistant.
MK1128 is braided with domestic PTFE graphite yarn according to the manufacturing process of GFO packing. The product has strong tensile strength and high thermal conductivity, and the low coefficient makes it stable and long-life. It is recommended for pump shaft, and can also be used for agitators, mixers, autoclaves and centrifugal pumps for water, steam, solvents and other media.
Download PDF Submit your InquiryMK1128 is braided with domestic PTFE graphite yarn according to the manufacturing process of GFO packing.
The product has strong tensile strength and high thermal conductivity, and the low coefficient makes it stable and long-life.
It is recommended for pump shaft, and can also be used for agitators, mixers, autoclaves and centrifugal pumps for water, steam, solvents and other media.
Items | unit | |||
---|---|---|---|---|
Pressure Mpa | Mpa | 3 | 10 | 20 |
Temperature | ℃ | -200-280 | ||
Linear speed | m/s | 0-16 | ||
pH range | 0-14 |
Made of various high strength and high-module spun araimd fibers through both advanced COVECORE blend spinning and PROIM fiber pretreatment process, rendering shaft high lubricity and low wearability due to dual lubricant content, and applicable for shaft-seal of reciprocating and rotating machines under high pressure and linear speed.
