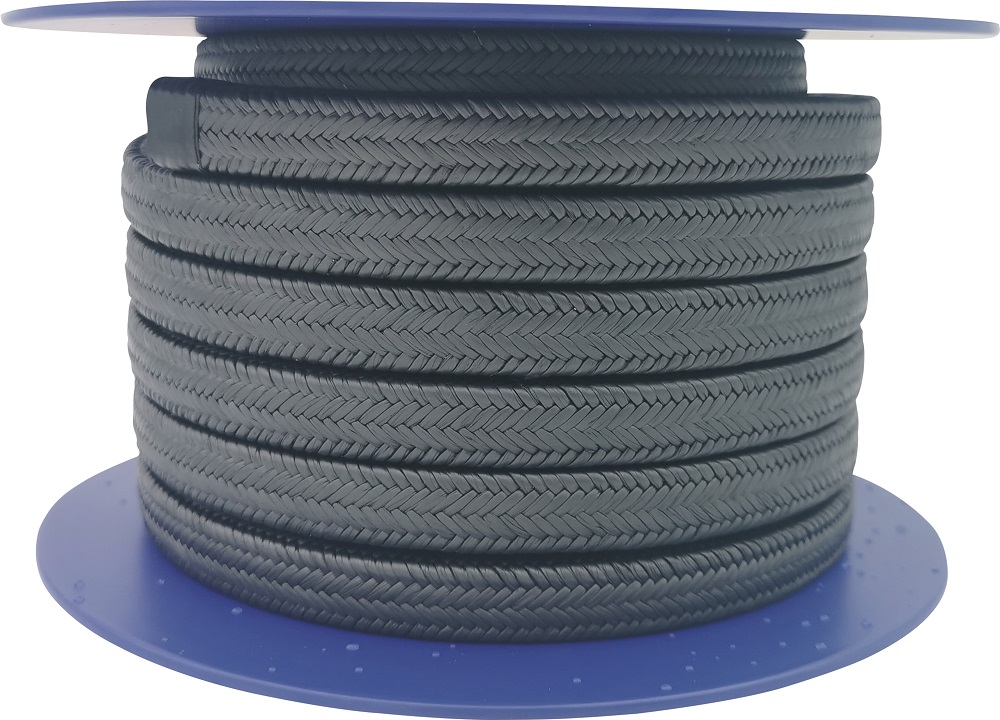

1176 GORE FIBER PTFE GRAPHITE BRAIDED PACKING
MK1176 is braided with imported GORE fiber.Good chemical resistant and heat resistant. Excellent self-lubricating, thermal conductive and low coefficient packing with no damage to shaft. Suitable for corrosive fluids, organic solvents, steam, hot water, oil rotary machines, valves, rotary pump, agitator, flanges, etc
Download PDF Submit your InquiryFEATURES
MK1176 is braided with imported GORE fiber.
Good chemical resistant and heat resistant.
Excellent self-lubricating, thermal conductive and low coefficient packing with no damage to shaft.
Suitable for corrosive fluids, organic solvents, steam, hot water, oil rotary machines, valves, rotary pump, agitator, flanges, etc
MODEL SPECIFICATIONS
| Items | unit |
|
|
|
|---|---|---|---|---|
| Pressure Mpa | Mpa | 3 | 10 | 20 |
| Temperature | ℃ | -200-280 | ||
| Linear speed | m/s | 0-18 | ||
| pH range | 0-14 | |||
